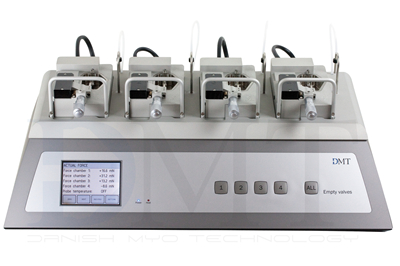

MyoDYNAMICS MUSCLE STRIP MYOGRAPH SYSTEM - 840MD



For use with skeletal and cardiac muscle and strips of other muscle types up to 30 mm in length















Programmable motor for stretching/retracting a mounted muscle 10 μm up to 11 mm

















Simultaneously examine up to four muscle strips under isometric conditions

















Water cooling circuit allowing working tempera-tures below room temperature







The unit can easily be used with the DMT Stimulator





Optional add-on of the Automatic Buffer Filler System - 625FS allow semi-automated filling of all four chambers

  • 产品概述

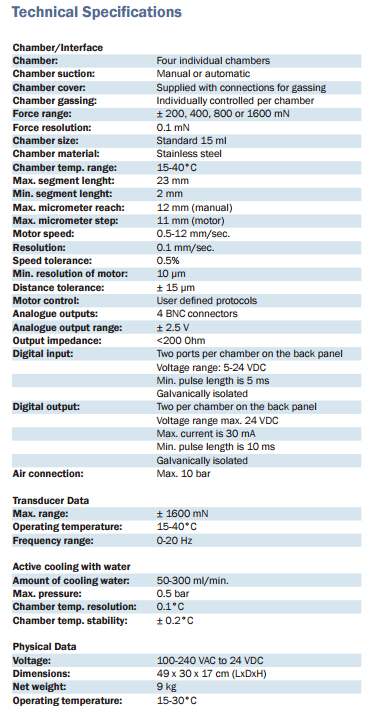

  • 产品参数
  • 产品特性
  • 产品应用


    The MyoDynamics Muscle Strip Myograph System - 840MDrepresents a state-of-the-art 4-channel myograph system for muscle strips of up to 30 mm in length. The system was originally developed to give the skeletal muscle physiologist a precise, easy-to-use, high-throughput muscle myograph with the capacity to stretch and retract the muscle under a range of conditions including electric field stimulation. The special design of the chamber, however, gives this system the flexibility to mount larger muscle strips of various organs and striated muscle up to 30mm.



    For use with skeletal and cardiac muscle and strips of other muscle types up to 30 mm in length


    Programmable motor for stretching/retracting a mounted muscle 10 μm up to 11 mm

    Simultaneously examine up to four muscle strips under isometric conditions

    Water cooling circuit allowing working tempera-tures below room temperature

    The unit can easily be used with the DMT Stimulator

    Optional add-on of the Automatic Buffer Filler System - 625FS allow semi-automated filling of all four chambers

    Each muscle bath unit, made of aluminium, features a stainless steel chamber. The tissue supports are positioned in the chamber with one side attached to the force transducer and the other to a combination manual positioner screw and a motorized micro positioner. The manual positioner allows the accurate setting of preload while the motorized micro positioner permits the user to stretch/relax the muscle according to user-defined settings. The sensitive force transducers provide measurement of isometric muscle contractions. Mounted tissue can be stretched and relaxed defined by the user with a minimum distance of 10µm up to 11mm and a maximum speed of 11mm/sec.


    The system comes with a unique tissue clamp system and hooks to hold the mounted tissues. Customised mounting supports can be made upon request.

    Stimulation electrodes built into the chamber cover (optional) can be used to activate the muscle via field stimulation from the Stimulator - CS4/CS8.

    This myograph is well suited for studies involving muscle reactivity and fatigue experiment in connection to neuromuscular disorders such as muscular dystrophy, ataxia and myofibrillar myopathies.

    Multiple units, especially when supplemented with theAutomatic Buffer Filler System - 625FS, can be arranged side-by-side, to facilitate high-throughput screening, such as drug testing or for experiments requiring the separation of muscle preparations in individual baths.
