Sorvall™ ST 8 Small Benchtop Centrifuge

Innovative Technologies:

Secure, push-button Thermo Scientific™ Auto-Lock™ rotor exchange in as little as three seconds delivers trouble-free rotor installation and removal and clear chamber access for cleaning convenience.
Biocontainment sealing options, including certified† Thermo Scientific™ ClickSeal™ lids offer glove-friendly, one-handed operation.
- Maximized swing-out capacity up to 8 x 50mL conical tubes, 24 x 5/7mL blood tubes, microplates and microtubes, all in one versatile centrifuge
- Fixed angle flexibility to spin 50mL conical tubes at over 12,000 x g or a wide range of microtubes at speeds up to 30,279 x g

User-friendly performance:

Low noise levels, including just 52 dBA at performance of 17,850rpm/30,279 x g (with Sorvall ST 8R centrifuge), to ensure a peaceful laboratory
One-touch operation with pre-saved protocols
Highly visible backlit display offers easy reading of parameters across the lab
Glove- and detergent-friendly user interface
Multilingual instructions offered in English, Dutch, French, German, Italian, Russian and Spanish on programming, run conditions, alerts and service messages
Centrifuge conforms to the latest clinical and safety standards such as UL, CE and IVD

Clinical Applications:

Research applications:

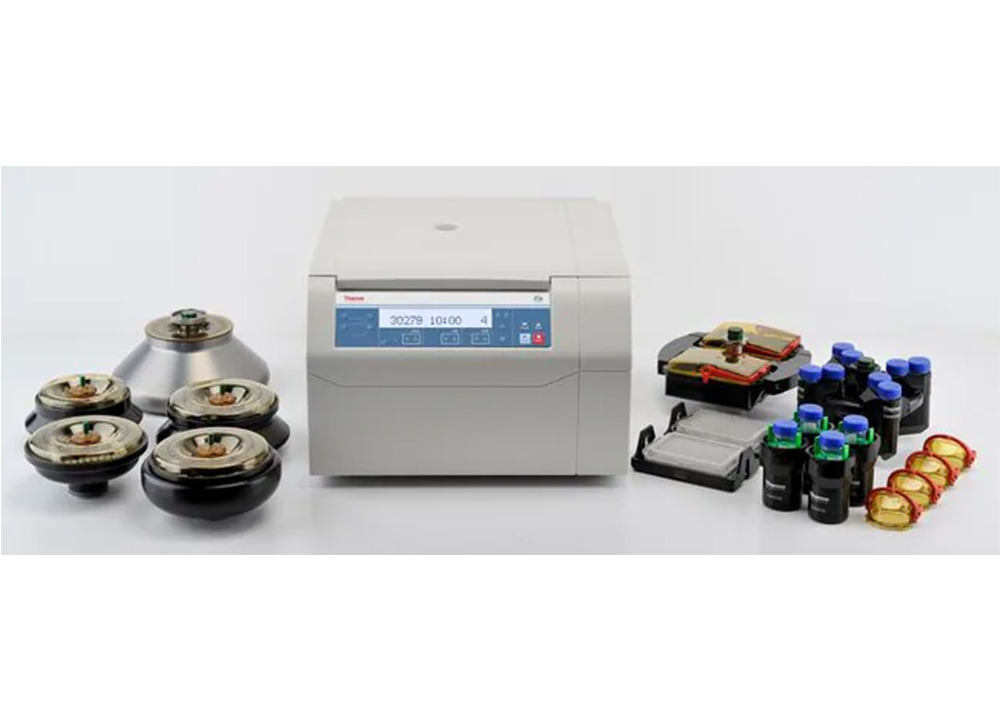

8 x 50mL swinging bucket rotor capacity, four microplates or 30 filtration columns for research needs
Auto-Lock rotor exchange for application flexibility—go from 50mL tube to a microplate to microtubes effortlessly

†Biocontainment certification by the Public Health England, Porton Down, UK.

Capacity	4 x 145 mL (TX-150), 6 x 50 mL (HIGHConic III)
Max. Speed	4,500 rpm (TX-150 rotor), 16,000 rpm (MicroClick 24 x 2 rotor)
Max. RCF	3,260 x g (TX-150 rotor), 24,328 x g (MicroClick 24 x 2 rotor)
Refrigerated	No
Height (English) Exterior	12.2 in.
Height (Metric) Exterior	31 cm
Length (English) Exterior	18.9 in.
Length (Metric) Exterior	48 cm
Noise Level	<58 dB(A) (with TX-150 rotor); <61 dB(A) (with MicroClick 24 x 2 rotor)
Safety Features	Auto-Lock rotor exchange system, SMARTSpin imbalance detection system, certified ClickSeal biocontainment lids
Width (English) Exterior	14.6 in.
Width (Metric) Exterior	37 cm
Wattage	310 w
Certifications/Compliance	IEC 61010-1, IEC 61010-2-020, IEC 61010-2-101, EN 61326-1; UL Listed / CE marked /IVD compliant / Biocontainment certified by the Public Health England, Porton Down, UK
Description	Sorvall ST 8 Small Benchtop Centrifuge
Electrical Requirements	230 V 50/60 Hz
Controller Type	Microprocessor
Dimensions (HWD)	12.2 x 14.6 x 18.9 in. (31 x 37 x 48 cm)
Drive System	Direct Brushless Induction
Program Storage	4 protocols via direct access key, with naming option and password protection available
Run Time	99 hr. 59 min., continuous
Product Line	Sorvall™
Height (English) Exterior Lid Open	26.8 in.
Profile (Acceleration/Braking)	2 (standard and soft)
Frequency	50/60 Hz
Height (Metric) Exterior Lid Open	67 cm
Rotor	TX-150
Voltage	230 V
Unit Size	Each
